OUR CLASSIC SERIES CSR1D IS A DIRECTIONAL WHEEL WITH ‘FAN BLADE’ MOTORSPORT INSPIRED STYLING, INFLUENCED BY GROUP B RALLY CARS OF THE 1980’S. THE X2 COMPATIBLE CSR1D CAN BE MIXED IN SPECIFIC CONFIGURATIONS WITH THE CSRD TF.

See section 05 for X2 mixed wheel examples.

Designed to enhance small to mid sized European vehicles from Audi, VW and BMW. Available with zero and deep concave profiles in two gloss finishes.

STANDARD FINISHES

Carbon Graphite Polished Lip

Vintage Gold Polished Lip

Pure Silver Polished Lip

HOME / WHEELS / CSR1D

01

CSR1D Gallery

See the CSR1D in Action

X2 SYSTEM - CSR1D REAR & CSRD TF FRONT CUSTOM FINISH

02

Specification

The CSR1D in Detail

Manufactured using IW Motioncast™ technology and created to enhance small to mid sized European vehicles from Audi, VW and BMW.

The CSR1D is an X2 compatible wheel, designed to be mixed in specific configurations with the CSRD TF (see section 05 for examples).

Size	Con	Max LD	RRP
18 X 8.5	SSL	690KG	£222.00
18 X 9.5	DSL	690KG	£234.00
19 X 8.5	SSL	690KG	£272.00
19 X 10	DSL	690KG	£284.00

PLEASE NOTE
* Weights may differ depending on ET and stud pattern.

CONCAVE OPTIONS
SSL = Single Step Lip
DSL = Double Step Lip

STUD PATTERNS
BMW - 5 x 120
Audi/VW - 5 x 100
Audi/VW/Mercedes - 5 x 112

WARRANTY
All wheels are covered by our 1 year warranty click here for further details.

Please contact IW for fitment advice for your vehicle.
Please note prices shown include UK VAT at 20%

Registered Design
The CSR1D is a registered IW
design (reg no: 002703397-0003)

03

Finishes

CSR1D Colour Options

CSR1D VINTAGE GOLD POLISHED DOUBLE STEP LIP

IW WARRANTY

2 years warranty & lifetime structural integrity

04

Technology

Cutting Edge Technology

MotionCast - The Pinnacle in casting technology

CSR wheels are initially cast using the IW Motioncast™ process, a superior form of casting that produces a denser alloy with less impurities and air pockets, allowing for a lighter and stronger wheel than traditional Low Pressure Cast wheels.

Low Pressure Cast Alloy

More impurities and air pockets within the alloy

IW Motioncast™

Less impurities and fewer air pockets within the alloy

05

X2 System Design

CSR1D X2 Options

Mix It Up

With The IW X2 System®

The CSR1D is an X2 compatible design and can be mixed in specific configurations with CSRD TF to create a unique X2 look.

The examples below illustrate the different configurations mixed with the CSRD TF.

X2 Options

X2 System® Option 1
Mixed sets with staggered setup - Two Zero Concave CSRD TF's front and two Double Step Lip CSR1D's rear.
X2 System® Option 2
Mixed sets with staggered setup - Two Single Step Lip CSR1D's front and two Deep Concave CSRD TF's rear.

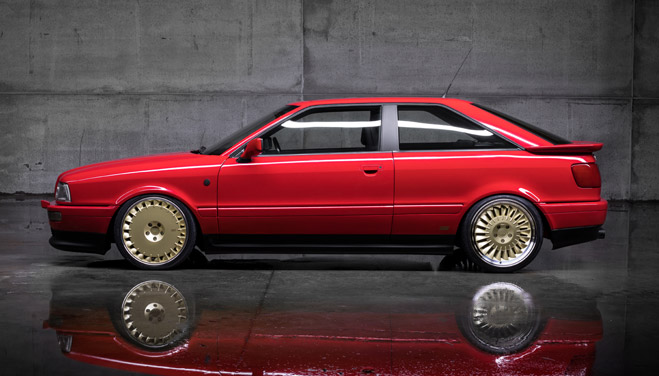

X2 System® Option 3
Mixed sets with square setup - Two Zero Concave CSRD TF's front and two Single Step Lip CSR1D's rear.
X2 System® Option 4
Mixed sets with square setup - Two Deep Concave CSRD TF's front and two Double Step Lip CSR1D's rear.
X2 System® Option 5
Mixed sets with square setup - Two Double Step Lip CSR1D's front and two Deep Concave CSRD TF's rear.
