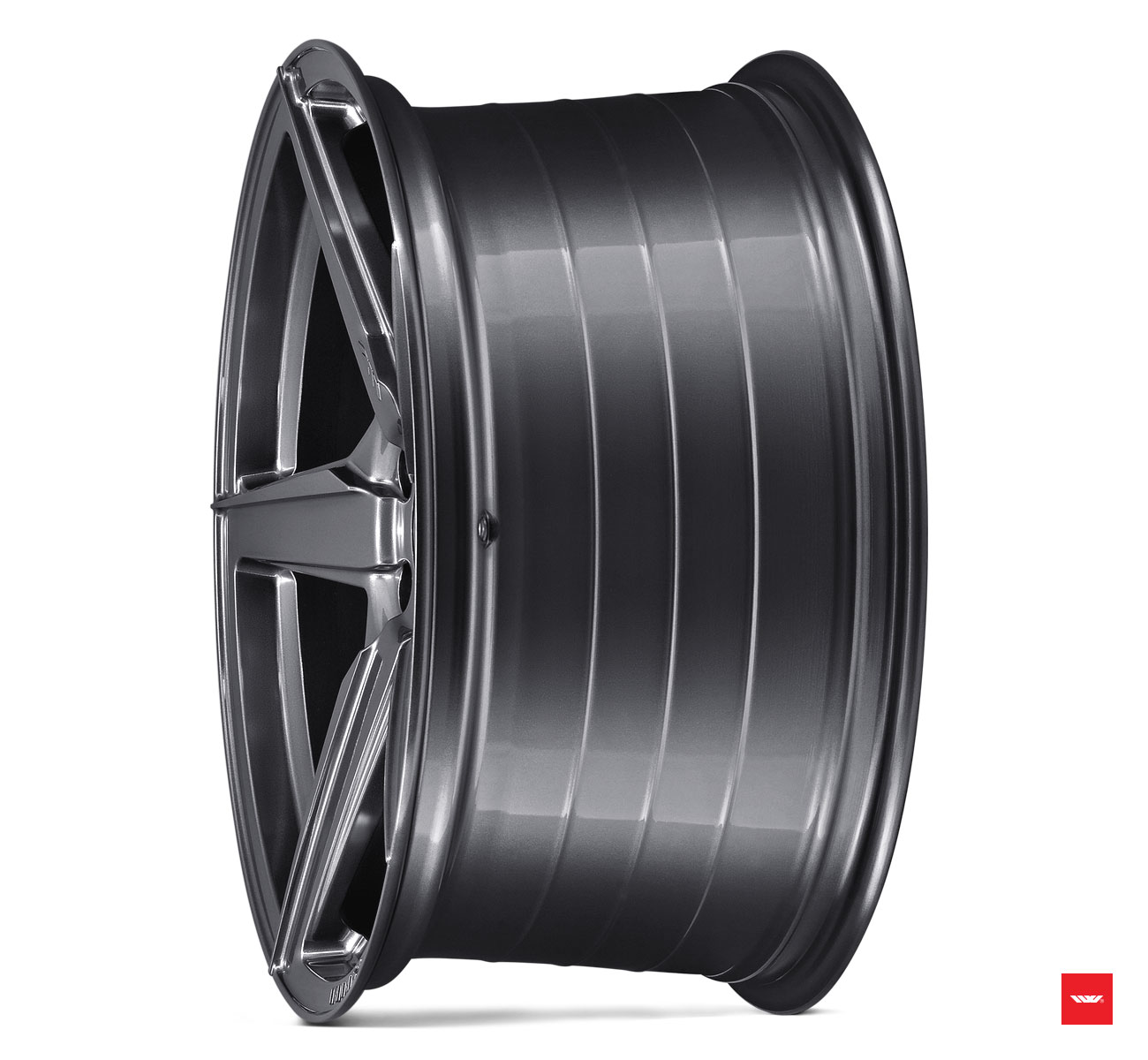

A LIGHTWEIGHT INTRICATE 5 SPOKE DESIGN WITH MULTI-LEVEL TAPERED SPOKES EMPHASISING THE WHEELS DETAIL, SIZE AND STYLE.

The FFR5 was conceived to maximise the lightweight properties of the combined Motioncast™ and flow form processes.

Styled specifically to enhance mid to large sized modern high performance vehicles with a contemporary aesthetic such as, Audi, BMW, Lexus and Mercedes.

HOME / WHEELS / FFR5

02


Specification

The FFR5 in Detail

A lightweight flow form wheel manufactured using IW FusionForged™ and Motioncast technologies, designed to enhance modern high performance vehicles.

Size Con Weight Max LD RRP
20 X 8.5 PC 11.3KG* 705KG £362.25
20 X 9 PC 11.5KG* 705KG £362.25
20 X 10 DC 10.9KG* 705KG £374.75
20 X 10.5 DC 11.3KG* 705KG £374.75
20 X 11 UC 11.9KG* 705KG £399.75
21 X 9 PC 12.7KG* 705KG £538.75
21 X 10.5 DC 12.7KG* 705KG £658.75

PLEASE NOTE
* Weights may differ depending on ET and stud pattern.
**Additional charge for IW Exclusive finishes, priced per set.

CONCAVE OPTIONS
PC = Performance Concave
DC = Deep Concave
UC = Ultra Concave
STUD PATTERNS
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
Lexus/Nissan GTR - 5 x 114.3
WARRANTY
2 years warranty and lifetime structural integrity guarantee, click here for further details.

Please contact IW or your nearest Authorised Dealer for fitment advice for your vehicle.
Please note prices shown include UK VAT at 20%

RegisterEd Design
The FFR5 is a registered IW
design (reg no: 003010461-0002)

03


Finishes

FFR5 Colour Options

IW Exclusive

Handcrafted finishes, special colours, discover IW Exclusive products

Discover

04


Technology

Combining Cutting Edge Technologies

MotionCast™ - The Pinnacle in casting technology

FFR wheels are initially cast using the IW Motioncast™ process, a superior form of casting that produces a denser alloy with less impurities and air pockets, allowing for a lighter and stronger wheel than traditional Low Pressure Cast wheels.

Low Pressure Cast Alloy

More impurities and air pockets within the alloy

IW Motioncast™

Less impurities and fewer air pockets within the alloy

IW Flow Form Technology

IW FusionForged™ utilises our state-of-the-art flow form technology. This process uses a special drum combined with heat and pressure applied by rollers that compress stretch and form the wheel barrel to a pre-defined thickness and desired profile.

This alters the structure of the aluminium forging a wheel barrel that is thinner, stronger and significantly lighter (approx 25%) than a traditional cast wheel, with enhanced strength and reduced weight properties comparable to fully forged wheels.

  • Fusionforged™ Step 1

    Each wheel is transferred from an oven to the flow forming drum. High pressure rollers move into position at the top of the wheel barrel.
  • Fusionforged™ Step 2

    The rollers move down the barrel applying pressure to compress, stretch and form the entire wheel barrel.
  • Fusionforged™ Step 3

    Flow forming alters the grain of the aluminium to produce a wheel barrel that is thinner, stronger and significantly lighter than traditional cast.

05


Concave Options

Three Concave Options Available

Performance Concave (PC)

Designed for maximum brake clearance suitable for larger brakes.

Concave Depth

20" - 40mm
21" - 36mm

Deep Concave (DC)

Front & rear wheel option in
specific widths.

Concave Depth

20" - 74mm
21" - 70mm

Ultra Concave (UC)

Our deepest concave option for rear wheel application

Concave Depth

20" - 102mm
