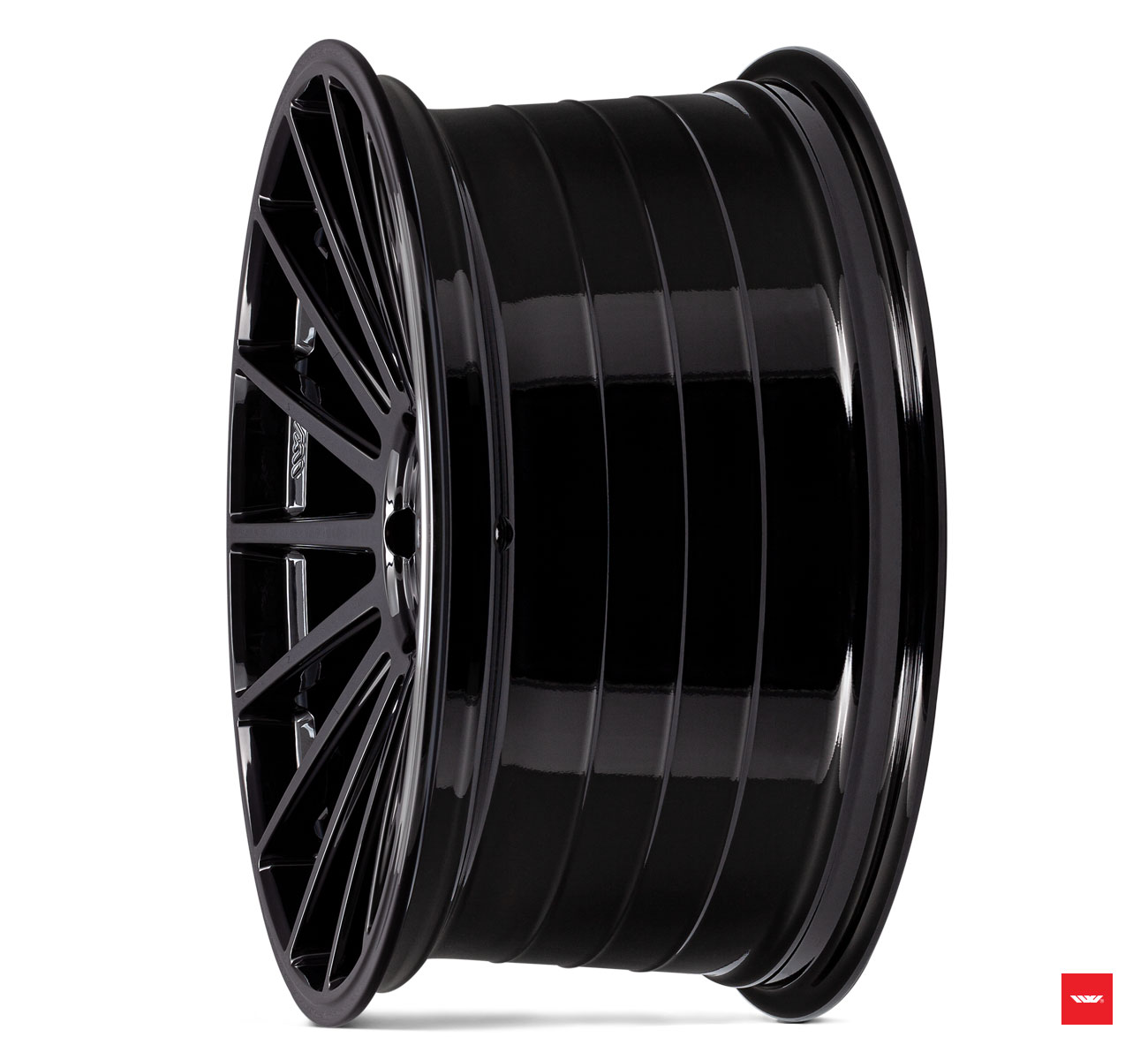

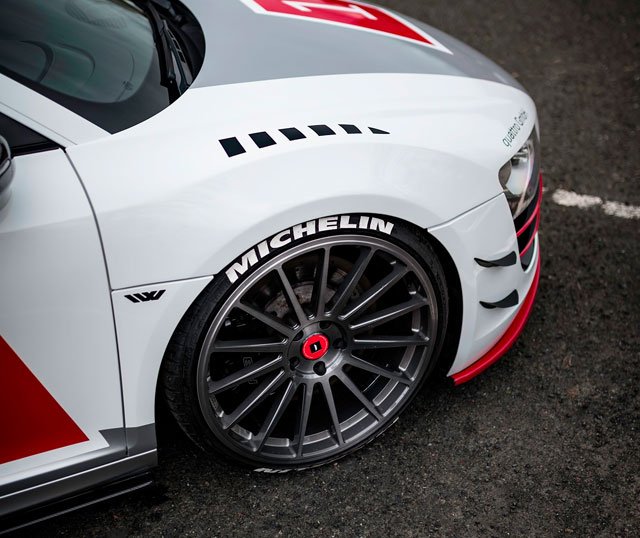

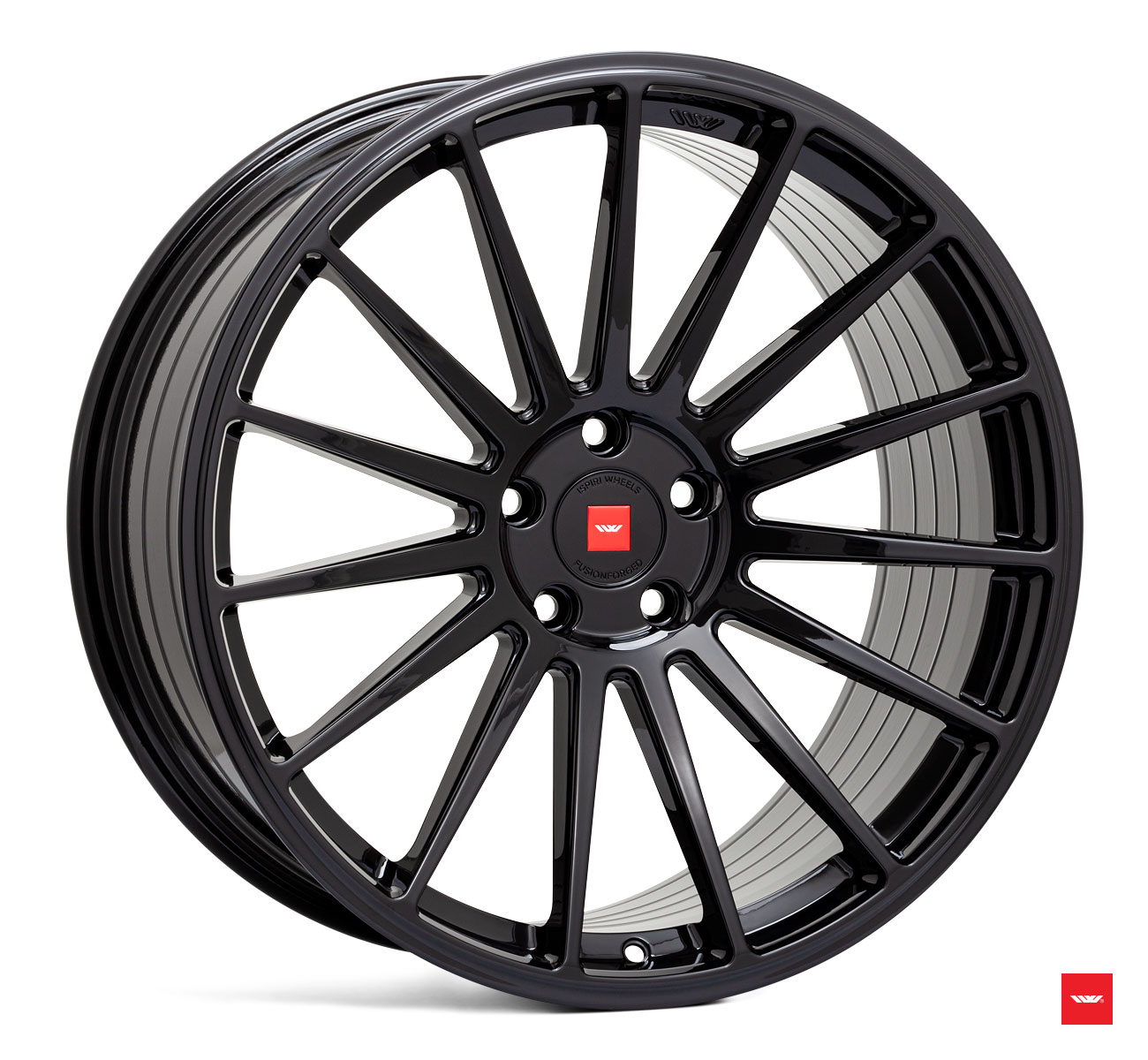

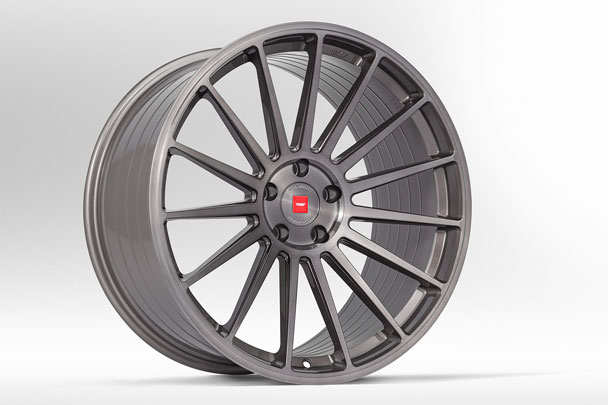

THE FFP2 IS A CLASSIC MULTI-SPOKE DESIGN INSPIRED BY MOTORSPORT. IT HAS A DEEP CONCAVE PROFILE AND LIGHTWEIGHT FUSIONFORGED™ CONSTRUCTION WITH EXLIP™ EXTENDED LIP PROFILE.

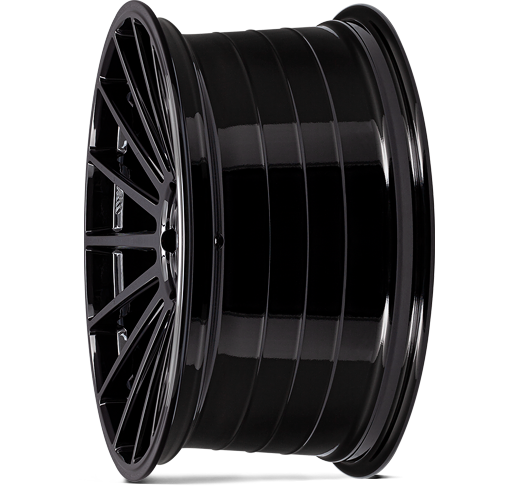

Exlip™ is designed to highlight the outer lip and further accentuate concave profiles without increasing overall widths.
02
Specification
The FFP2 in Detail
A lightweight flow form wheel manufactured using IW FusionForged™ and Motioncast™ technologies, designed to enhance modern high performance vehicles.
| Size | Con | Weight | Max LD | RRP |
|---|---|---|---|---|
| 19 X 8.5 | PC | TBC* | 690KG | £357.00 |
| 19 X 9 | PC | TBC* | 690KG | £357.00 |
| 19 X 10 | DC | TBC* | 690KG | £372.00 |
| 19 X 9.5 | PC | TBC* | 690KG | £372.00 |
| 20 X 8.5 | PC | TBC* | 735KG | £415.00 |
| 20 X 9 | PC | TBC* | 735KG | £415.00 |
| 20 X 10 | DC | TBC* | 735KG | £428.00 |
| 20 X 10.5 | DC | TBC* | 735KG | £428.00 |
| 20 X 9.5 | DC | TBC* | 735KG | £428.00 |
PLEASE NOTE
* Weights may differ depending on ET and stud pattern.
CONCAVE OPTIONS
PC = Performance Concave
DC = Deep Concave
PC = Performance Concave
DC = Deep Concave
STUD PATTERNS
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
WARRANTY
All wheels are covered by our 1 year warranty click here for further details.
All wheels are covered by our 1 year warranty click here for further details.
Please contact IW for fitment advice for your vehicle.
Please note prices shown include UK VAT at 20%
Registered DesignThe FFP2 is a registered IW
design (reg no: TBC)
03
Finishes

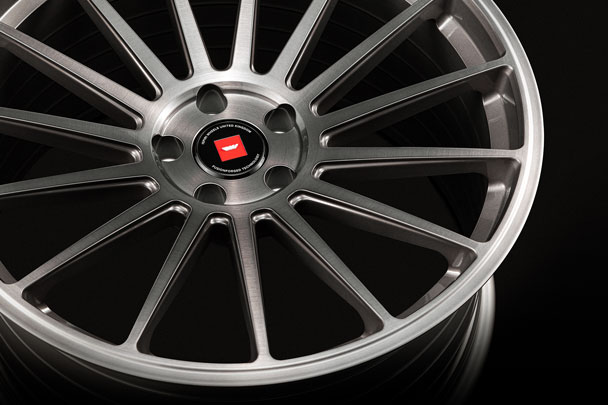

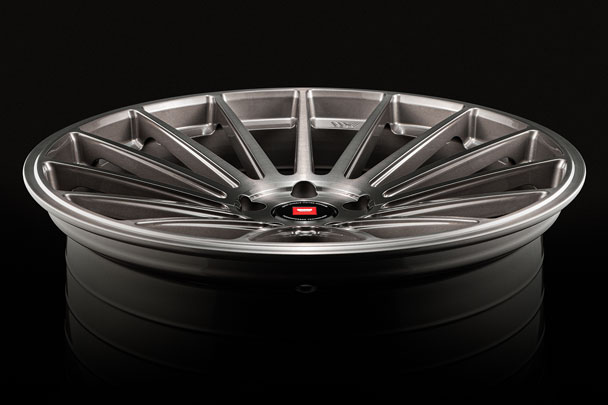

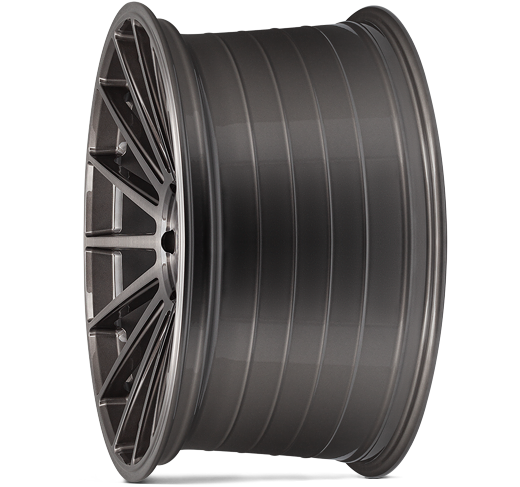

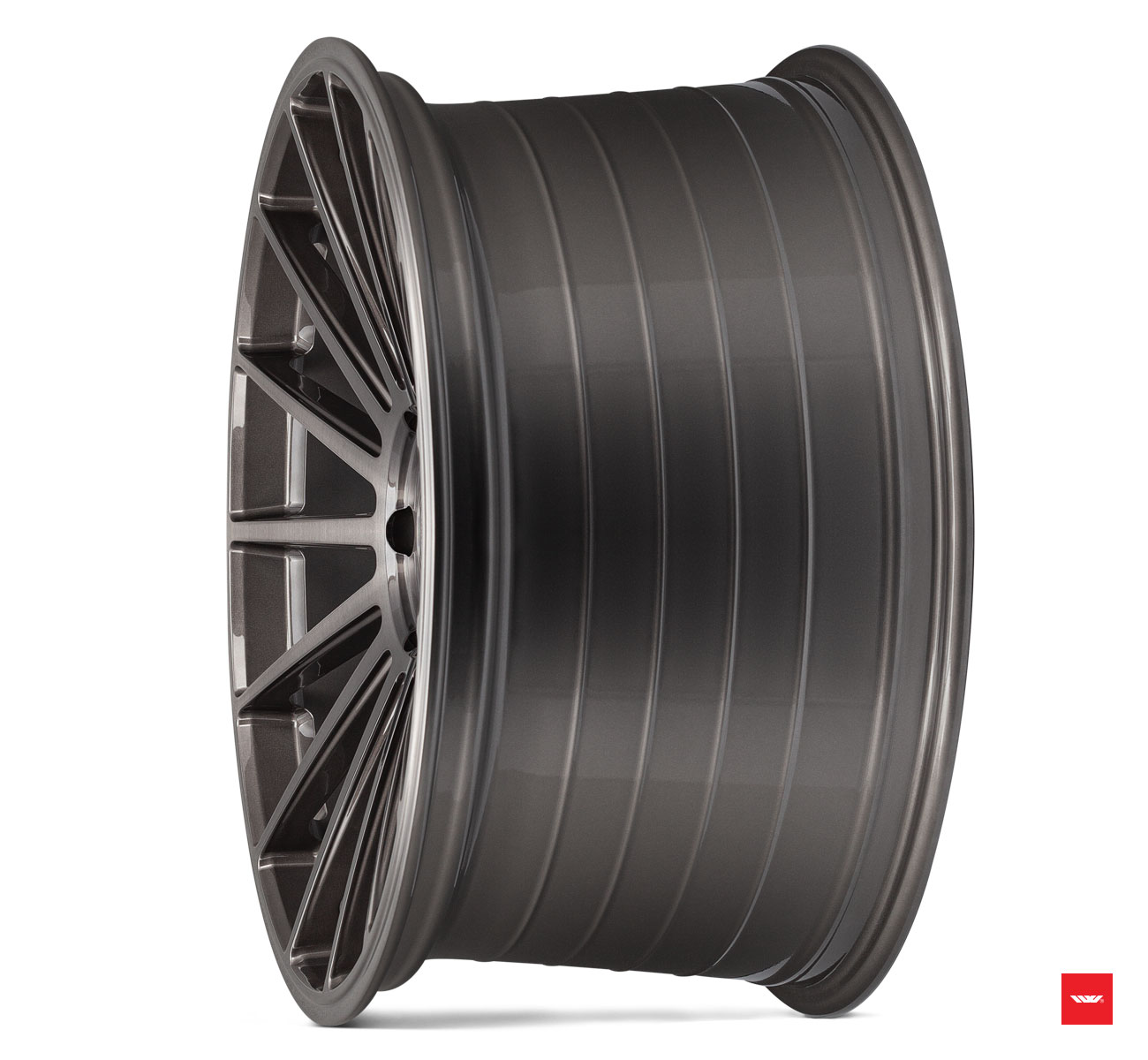

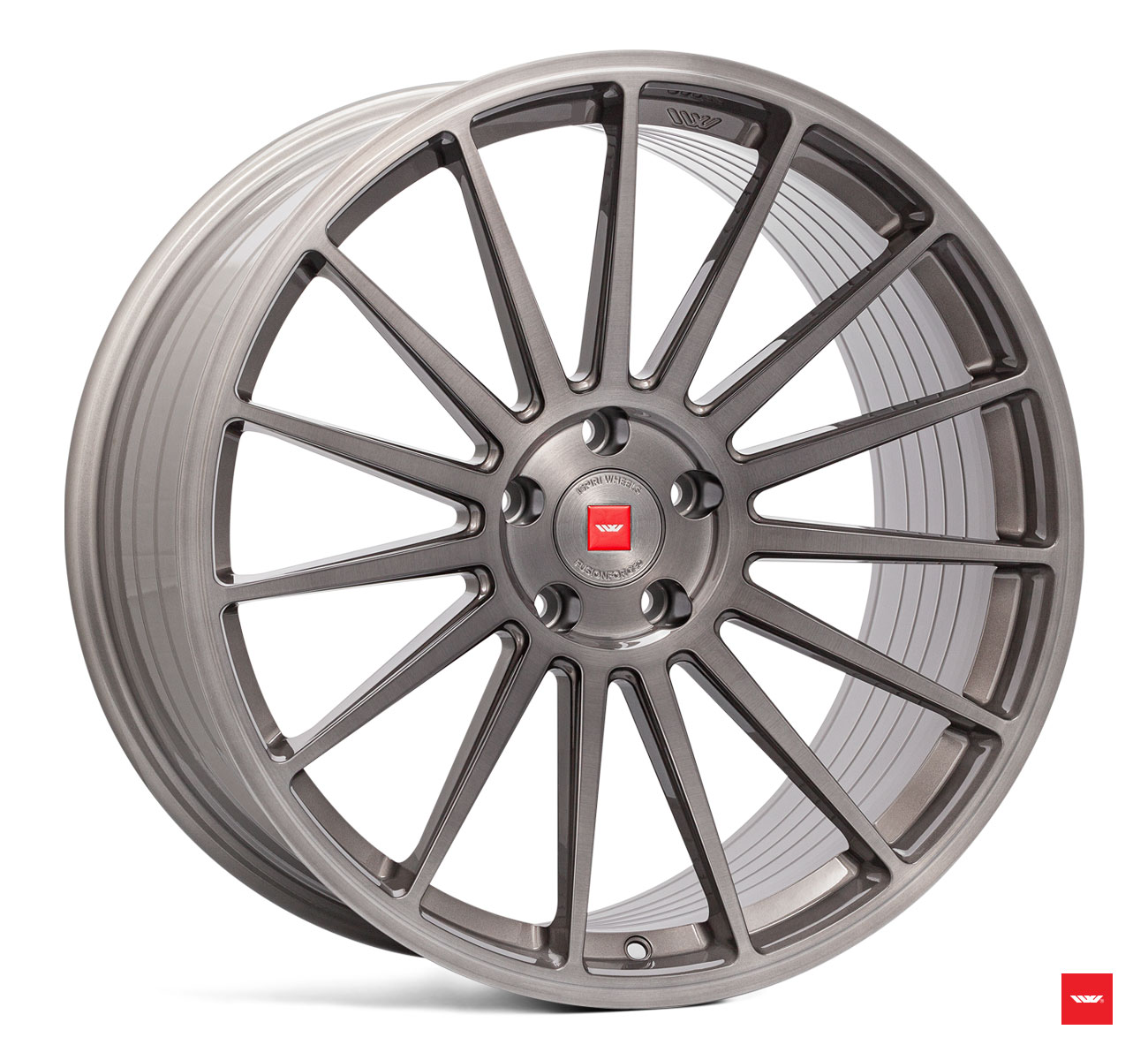

FFP2 Colour Options
IW Exclusive
Handcrafted finishes, special products, discover IW Exclusive
04
Technology
Combining Cutting Edge Technologies
MotionCast™ - The Pinnacle in casting technology
FFR wheels are initially cast using the IW Motioncast™ process, a superior form of casting that produces a denser alloy with less impurities and air pockets, allowing for a lighter and stronger wheel than traditional Low Pressure Cast wheels.
Low Pressure Cast Alloy
More impurities and air pockets within the alloy
IW Motioncast™
Less impurities and fewer air pockets within the alloy
IW Flow Form Technology
IW FusionForged™ utilises our state-of-the-art flow form technology. This process uses a special drum combined with heat and pressure applied by rollers that compress stretch and form the wheel barrel to a pre-defined thickness and desired profile.
This alters the structure of the aluminium forging a wheel barrel that is thinner, stronger and significantly lighter (approx 25%) than a traditional cast wheel, with enhanced strength and reduced weight properties comparable to fully forged wheels.
-
Fusionforged™ Step 1
Each wheel is transferred from an oven to the flow forming drum. High pressure rollers move into position at the top of the wheel barrel. -
Fusionforged™ Step 2
The rollers move down the barrel applying pressure to compress, stretch and form the heated wheel barrel. -
Fusionforged™ Step 3
Flow forming alters the structure of the aluminium to produce a wheel barrel that is thinner, stronger and significantly lighter than traditional cast.
05
Concave Options
Three Concave Options Available
