A VARIATION OF THE POPULAR FFR1 WITH A MOTORSPORT INSPIRED INNER RING. THE FUSIONFORGED™ FFR2 WAS DESIGNED TO BE RUN INDEPENDENTLY OR MIXED WITH THE FFR1 AS AN X2 OPTION.
The FFR2 is styled specifically to enhance modern high performance vehicles with a contemporary aesthetic such as Audi, BMW, Mercedes and Porsche.
01

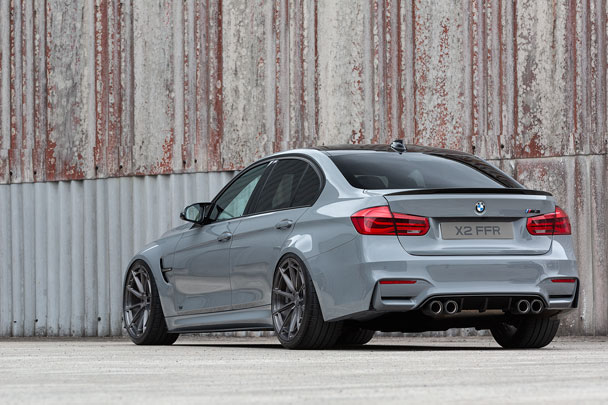

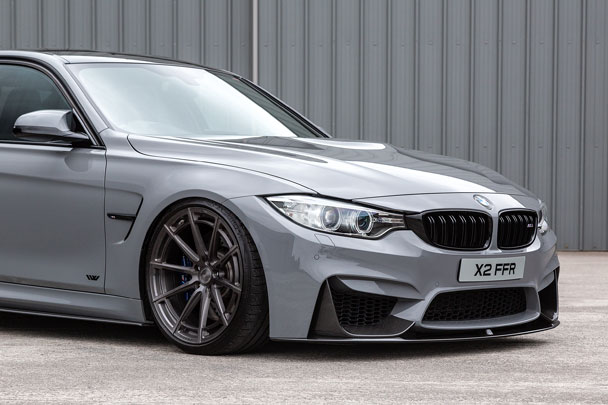

FFR2 Gallery
See the FFR2 in Action
02
Specification
The FFR2 in Detail
A lightweight flow form wheel manufactured using IW FusionForged™ and Motioncast™ technologies, designed to enhance modern high performance vehicles.
| Size | Con | Weight | Max LD | RRP |
|---|---|---|---|---|
| 20 X 8.5 | PC | 11.5KG* | 705KG | £415.00 |
| 20 X 9 | PC | 11.6KG* | 705KG | £415.00 |
| 20 X 10 | DC | 11.7KG* | 705KG | £428.00 |
| 20 X 10.5 | DC | 12.1KG* | 705KG | £428.00 |
| 20 X 9.5 | DC | 11.2KG* | 705KG | £428.00 |
PLEASE NOTE
* Weights may differ depending on ET and stud pattern.
**Additional charge for IW Exclusive finishes, priced per set.
CONCAVE OPTIONS
PC = Performance Concave
DC = Deep Concave
PC = Performance Concave
DC = Deep Concave
STUD PATTERNS
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
BMW - 5 x 120
Audi/VW/Mercedes - 5 x 112
WARRANTY
All wheels are covered by our 1 year warranty click here for further details.
All wheels are covered by our 1 year warranty click here for further details.
Please contact IW for fitment advice for your vehicle.
Please note prices shown include UK VAT at 20%
Registered DesignThe FFR2 is a registered IW
design (reg no: TBC)
03
Finishes
FFR2 Colour Options
IW Exclusive
Handcrafted finishes, special colours, discover IW Exclusive products
04
Technology
Combining Cutting Edge Technologies
MotionCast™ - The Pinnacle in casting technology
FFR wheels are initially cast using the IW Motioncast™ process, a superior form of casting that produces a denser alloy with less impurities and air pockets, allowing for a lighter and stronger wheel than traditional Low Pressure Cast wheels.
Low Pressure Cast Alloy
More impurities and air pockets within the alloy
Ispri Motioncast
Less impurities and fewer air pockets within the alloy
IW Flow Form Technology
IW FusionForged™ utilises our state-of-the-art flow form technology. This process uses a special drum combined with heat and pressure applied by rollers that compress stretch and form the wheel barrel to a pre-defined thickness and desired profile.
This alters the structure of the aluminium forging a wheel barrel that is thinner, stronger and significantly lighter (approx 25%) than a traditional cast wheel, with enhanced strength and reduced weight properties comparable to fully forged wheels.
-
Fusionforged™ Step 1
Each wheel is transferred from an oven to the flow forming drum. High pressure rollers move into position at the top of the wheel barrel. -
Fusionforged™ Step 2
The rollers move down the barrel applying pressure to compress, stretch and form the heated wheel barrel. -
Fusionforged™ Step 3
Flow forming alters the structure of the aluminium to produce a wheel barrel that is thinner, stronger and significantly lighter than traditional cast.
05
X2 System Design
FFR2 X2 Options
Mix It Up with X2
The FFR2 is an X2 compatible design and can be mixed in specific configurations with FFR1 to create a unique X2 look.
06
Concave Options
Two Concave Options Available
